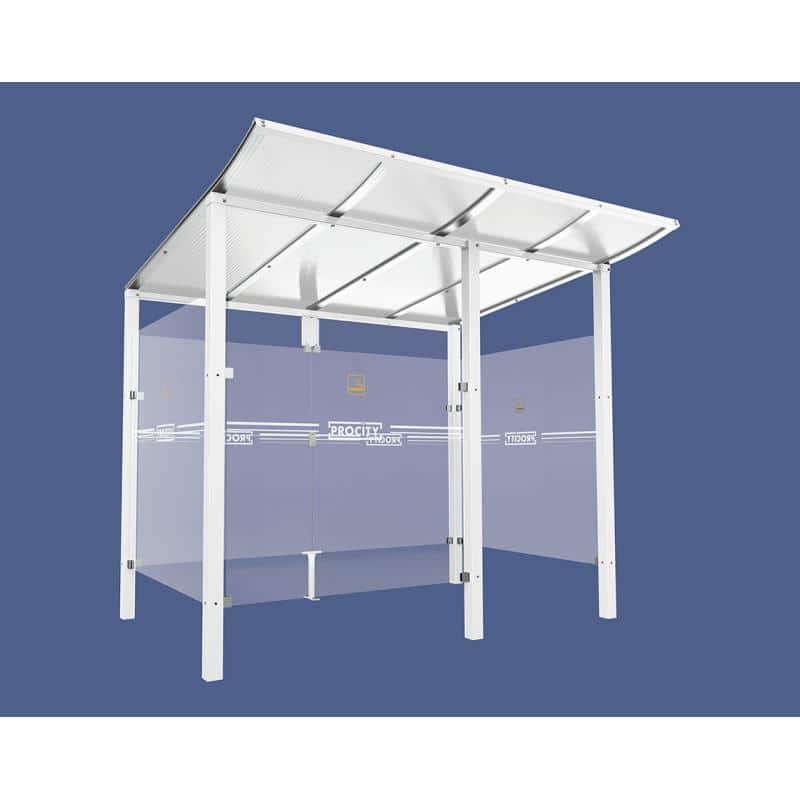

The Modulo smoking and Vaping shelter protects users from the weather and fits perfectly into any type of environment, thanks to its simple and elegant design.

This model is offered with a choice of with or without the wrap around front panel (as shown in some pics). The version without the wraparound panel(s) is fully compliant with UK smoking shelter regulations, although the unit is fully compliant (with or without the wraparound) as a vaping shelter only.

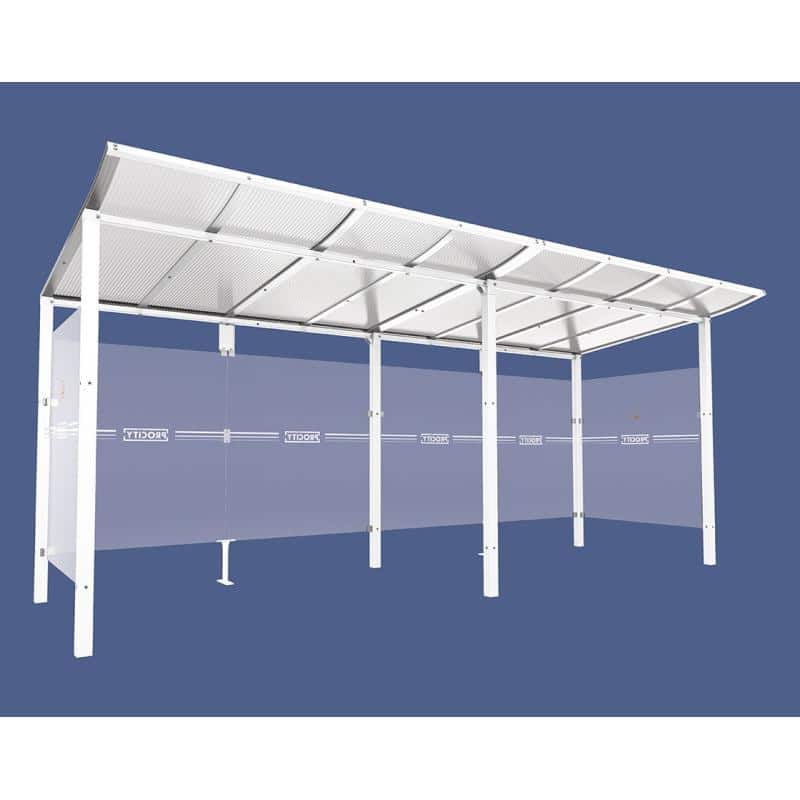

  • Available in two lengths: 2500mm or 5000mm.
  • Depth: 1990mm.
  • Under roof height: 1942mm min, rising to 2100mm max.
  • Square posts: 70mm x 70mm steel tubes.
  • Roof: anodised aluminum profiles with cross members in 40mm x 40mm steel tube, and 10mm anti-UV-treated cellular polycarbonate panels.
  • Front, side and back panels: 5mm safety glass with safety markings.
  • Panel attachment: pinch-grip system for easy replacement in case of vandalism.
  • Finish: galvanised and painted in your choice of our standard RAL colours.
  • Installation: concreted directly into ground.
  • OPTIONS INCLUDE:
    • 2500mm Perch seat

Modulo, 2.5m or 5m Smoking and Vaping Shelter

Price Includes Mainland UK Delivery.

Please choose colour and other options below (if applicable).

** Bulk Pricing Available ** See below for details, or contact us.

Contact us for your free no-obligation quote – our team are happy to help. Email: admin@kbsdepot.com or call: 01366 310 500

Clear
BULK PRICE DISCOUNT CALCULATED UPON ADDING TO CART
Bulk Price Saving: £0.00 - Current Product Total (Excluding Options): £2,100.00 +VAT (Delivery Included)

Lead time 8-10 weeks

Procity – Manufacturing

  • Shelters – All the ‘off the shelf’ shelter products we offer (including walkways, bus shelters, smoking shelters and Bicycle shelters) are manufactured to the very highest standards by Procity, who are EN 1090 certified manufacturers for products constructed from Aluminium and Steel. This certification ensures all products fully comply with stringent EU standards in terms of quality and safety.
  • 100% of steel, aluminium and packaging is recycleable
  • 100% of production waste (oil, paint, etc…) is collected and processed by specialised waste disposal.
  • Whether zinc primed and painted or galvanized and painted, the paint quality of products is tested in terms of impact resistance, adhesion and paint thickness.
  • Procity also hold the right to use the PEFC mark, certifying that any timber used in the manufacture of products comes from sustainably managed forests and controlled sources.

Procity – Warranties

All products manufactured by Procity have a 5 year warranty* which includes..

  • The conformity and origin of raw materials
  • The precision of cuts, bends and assembly
  • The quality of the welds
  • The waterproofness of outdoor noticeboards
  • The quality of paint finish and their anti-UV resistance.
  • All products that have undergone a hot dip galvanising or anodising process have a 10 year warranty on corrosion.
  • Phosphate treated and painted products have a 2 year warranty on corrosion.
  • Zinc primed & painted products have a 5 year warranty**
  • Since timber is a living material, the warranty of products containing wood is limited to 2 years.

* excludes saline environments (within 5km of maritime locations, besides heavily salted roads or other strongly corrosive environments…)

** where applicable – please contact us for a quote on upgrading from a Zinc primed and painted finish to galvanised and painted finish, for maximum corrosion warranty.

Additional information

Colour

Procity Grey, White, Blue, Light Red, Dark Red, Black, Silver, Green, Brown, Corten Effect

UK Compliant

UK compliant No front Panel, Front panel required

Size

2.5m, 5m
